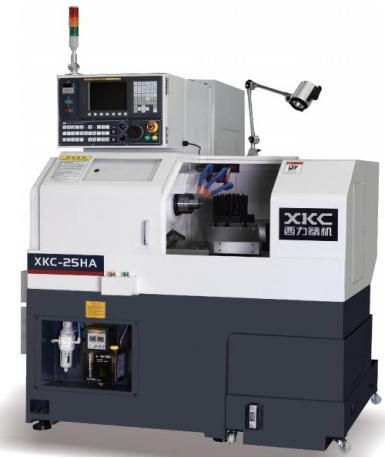

20H/25H/30H

SUPER-SMALL  HIGH PRECISION  CNC  LATHES

高 精 度 對 稱 式 主 軸 ：High  Accuracy  Symmetry  Spindle:

機床采用對稱式主軸箱結構配置精密角接觸球專用軸承，保證主軸高剛性和持久的精度保持，主軸跳動<2μm。

The machine tool features a symmetrical spindle housing structure equipped with precision angular contact ball bearings, ensuring high spindle rigidity and sustained accuracy maintenance with spindle runout <2μm.

卸 荷 式 夾 緊 機 構 ：Unloading Type Clamping Mechanism:

采用獲取專利的雙級夾緊氣缸卸荷裝置，延長了夾緊機構的壽命。主軸最高轉速6000轉/分鐘，可以實現高速、高效自動化加工。

The adoption of a dual-stage clamping cylinder unloading device with patented technology extends the service life of the clamping mechanism. With a maximum spindle speed of 6,000 revolutions per minute, it enables high-speed and efficient automated machining.

高 剛 性 床 身 ：High Rigidity Bed:

床身設計經熱變形分析，采用高質量密烘鑄鐵鑄造，提高了機床的剛性。

The bed design, optimized through thermal deformation analysis, is fabricated from high-quality dense-dried cast iron, enhancing the rigidity of the machine tool.

高 精 度 進 給：Accurate Feeding

進給各軸全伺服驅動，采用高精度滾珠絲杠，保證加工精度及長時間的精度保持，進給各軸重復定位精度<±3μm。

All feed axes are fully servo-driven, utilizing high-precision ball screws to ensure machining accuracy and long-term precision maintenance, with repeat positioning accuracy of <±3μm for each feed axis.

排 刀 式 刀 架：Comb Type Tool Rest

排刀式刀架結構使重復換刀誤差為最小，換刀高速準確，能夠大幅度節省加工時間。

The blade-cutting type tool holder structure minimizes repetitive tool-changing errors, enabling high-speed and precise tool changes that significantly reduce machining time.

機 床 導 軌 結 構 ：Guide way Construction:

機床導軌采用寬規格、高精度直線導軌，增強機床整體剛性，進給軸導軌全封閉防護，提高了機床導軌壽命。

The machine tool guideways employ wide-format, high-precision linear guideways to enhance the overall rigidity of the machine tool. The feed axis guideways feature fully enclosed protection, thereby extending the service life of the guideways.

電 柜 和 冷 卻 箱 ：Electric Cabinet and Cutting Box:

外置式獨立強電柜設計，維護方便，使用更加安全。右置側拉式冷卻箱和接屑盒，方便狹小空間擺放。

The external independent high-voltage cabinet features a user-friendly design for easy maintenance and enhanced safety. The right-side pull-out cooling unit and chip collection box facilitate installation in confined spaces.
