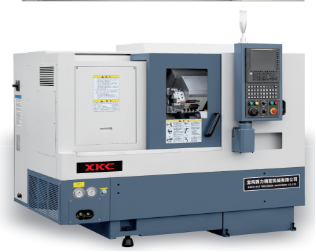

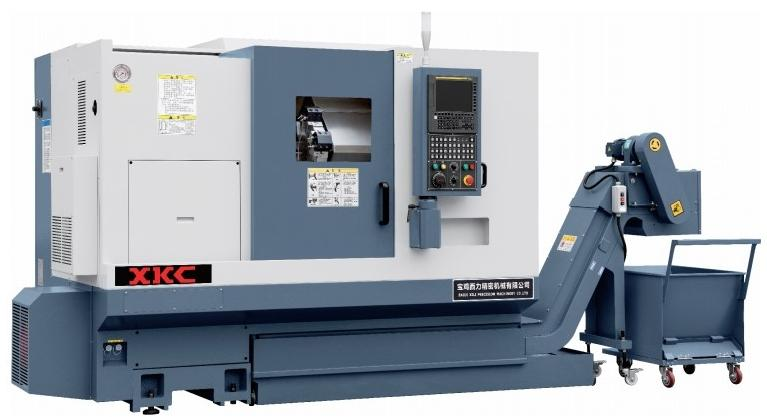

T5/T6/T7/T8系列斜床身精密數控車床

SLANT-BED PERCISION CNC LATHE

高 精 度 主 軸 ：High Precision Spindle

機床采用精密級主軸專用軸承，高剛組合設計，保證主軸的高剛性和持久精度，主軸跳動<5μm。

The machine tool employs precision-grade spindle-specific bearings and a high-rigidity composite design, ensuring exceptional spindle rigidity and long-term accuracy with spindle runout <5μm.

高 效 率 加 工 ：High Efficiency Machining

機床主軸最高轉速5500轉/分，X、Y 軸快移速度最高可達24、28米/分鐘?？梢耘渲米詣铀土蠙C，實現高速、高效自動化加工。

The machine tool spindle achieves a maximum rotational speed of 5,500 rpm, with X and Y axes capable of rapid movement speeds of up to 24 and 28 meters per minute, respectively. It can be equipped with an automatic feeding system to enable high-speed, efficient automated machining.

高 精 度 進 給 ：Accurate Feeding

進給各軸全伺候驅動，采用高精度滾珠絲杠，保證加工精度及長時間的精度保持，進給各軸重復定位精度<±3μm。

All feed axes are fully servo-driven, utilizing high-precision ball screws to ensure machining accuracy and long-term precision maintenance, with repeat positioning accuracy of <±3μm for each feed axis.

高 精 度 刀 塔 ：High Precision Turret

采用高精度刀塔，刀位數多，換刀快速、平穩、準確，大幅度節約加工時間。

The system employs a high-precision tool turret with multiple tool positions, enabling rapid, smooth, and precise tool changes that significantly reduce machining time.

液 壓 尾 座 ：Hydraulic Turret

液壓式尾座，配置靈活，大大提高了軸類零件的加工精度和效率，大幅度節約加工時間。

The hydraulic tailstock offers flexible configuration, significantly enhancing the machining accuracy and efficiency of shaft components while substantially reducing processing time.

超 強 切 削 ：Extra Heavy Cutting

高轉速、高精度液壓回轉缸，精密筒夾和高剛性精密動力卡盤配置，提高了韌性材料切削和強力切削的能力。

The high-speed, high-precision hydraulic rotary cylinder, combined with precision cylinder clamps and a highly rigid precision power chuck, enhances the cutting performance for both ductile materials and high-strength materials.

數 控 系 統 ：Control System

采用FANUC數控系統，使機床具有高穩定性。也可選配新代或其它國產數控系統。

The use of the FANUC CNC system ensures high stability of the machine tool. Alternatively, next-generation or other domestically produced CNC systems can be selected for configuration.

機床規格參數

MACHINE SPECIFICATION PARAMETERS
