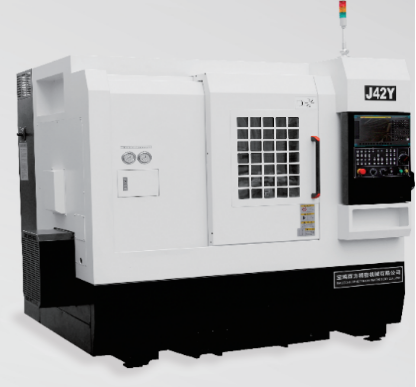

J42Y/J42AY系列車削中心
J42Y/J42AY SERIES TURNING CENTER
主軸：高精、高速、高穩定性 High Precision, High Speed, High Stability
機床采用機械式主軸并經過精確的動平衡校正，具有良好的回轉精度和穩定性，抗振性強。標準配置C軸，分度精度達到0.001°,主軸采用精密高速角接觸球軸承+圓柱滾子軸承結構，具有良好的剛性和高達5000r/min的轉速。
The machine tool features a mechanical spindle with precise dynamic balancing calibration, delivering excellent rotational accuracy, stability, and strong vibration resistance. It is standardly equipped with a C-axis offering a indexing accuracy of 0.001. The spindle employs a precision high-speed angular contact ball bearing combined with cylindrical roller bearings, ensuring superior rigidity and operating speeds up to 5000 rpm.
主機：高剛性、高抗振結構
Machine Host: High Rigidity, High Anti Vibration Structure
J42Y/J42AY車削中心采用整體式30°斜床身結構，平床鞍，整體式立柱，均采用優質鑄鐵，經過多次時效處理，通過優化的結構設計和工藝方法使機床具有良好的剛性、抗振性和精度。
The J42Y/J42AY lathe center features an integrated 30-degree inclined bed structure, a flat bed saddle, and an integrated column, all constructed from high-quality cast iron and subjected to multiple aging treatments. Through optimized structural design and manufacturing processes, the machine tool exhibits excellent rigidity, vibration resistance, and precision.
刀具：十六個刀位，準確定位
Tools: Sixteen tool positions, accurate positioning
J42Y/J42AY車削中心采用八工位液壓刀塔，四+四聯動力頭，多種裝夾刀具共計16個刀位，最多可擴至20個刀位，滿足市場大多數零件加工需求，一次裝夾可完成零件除翻面以外的其余復雜面加工，極大的提高加工效率和零件質量。
The J42Y/J42AY lathe center features an eight-station hydraulic tool post, a four-plus-four combined power head, and a total of 16 tool positions with various clamping tools, expandable up to 20 positions. This configuration meets the machining requirements of most market components, enabling the completion of all complex surface operations (excluding face reversal) in a single setup, significantly enhancing processing efficiency and part quality.
選擇配置
Optional configuration
●5/6寸卡盤自動卸料裝置 5/6-inch chuck automatic unloading device
●零件傳輸裝置 Parts conveyer
●符合用戶需求的特殊配置 Special configuration that meets user needs
機床規格參數
MACHINE SPECIFICATION PARAMETERS 項目ITEM | J42Y | J42AY | |
加工能力 Capacity | 最大的回轉直徑 Max. swing diaover bed | φ400mm | φ400mm |
最大加工直徑 Max process diameter | φ200mm | φ200mm | |
最大加工長度 Max process length | 200mm | 200mm | |
主軸通孔直徑 Spindle through hole diamete | φ45mm | φ45mm | |
主軸 Spindle | 主軸最高轉速 Max spindle speed | 5000rpm/min | 5000rpm/min |
工件夾持方式 Clamp type | CL-42A5 | CL-42A5 | |
主軸端部形式 Spindle nose type | A2-5 | A2-5 | |
快移速度 Rapid feed | X/Y/Z軸快進速度 X/Y/Z Axis traverse | 20/15/20m/min | 20/15/20m/min |
X/Y/Z軸行程 X/Y/Z Axis travel | 350/200/400mm | 450/260/400mm | |
刀具配置 Tool configuration | 配置形式 Configuration form | 車銑鉆鏜 Turning, milling, driling, and boring | |
配置數量 Configuration quantity | 側銑頭4+4,8工位臥式刀塔 Side milling head 4+4,8-station horizontal turret | ||
刀方規格 Tool size | 20x20 | 20x20 | |
夾持規格 Clamping specifications | ER20 | ER25 | |
鏜銑刀規格 Boring andmiing tool specfications | φ13mm | φ16mm | |
刀具驅動功率 Tool driving power | FANUC 1.3KW SYNTEC 1.2KW | 雙電機 Dual motor 1.2/1.2KW | |
刀具最大轉速 Maximum tool speed | 3000r/min | 3000r/min | |
電機 Motor | 主軸電機 Spindle motor | 5.5/7.5KW | 7.5/11KW |
進給電機 Feed motor X/Y/Z | FANUC 1.8/0.75/1.2KW SYNTEC 1.3/0.85/1.3KW | 1.8/1.2/1.8KW | |
其它 Others | 冷卻馬達 Cooling motor | 550W | 550W |
電源容量 Power capacity | 15KVA | 15KVA | |
機床尺寸(長×寬×高) Floor Space | 2200×1820×2075mm | 2380*1930*2165mm | |
主軸中心高度 Spindle center height | 1185mm | 1250mm | |
機床重量 Mass of machine | 約3200kg about 3200kg | 約3500kg about 3500kg | |
