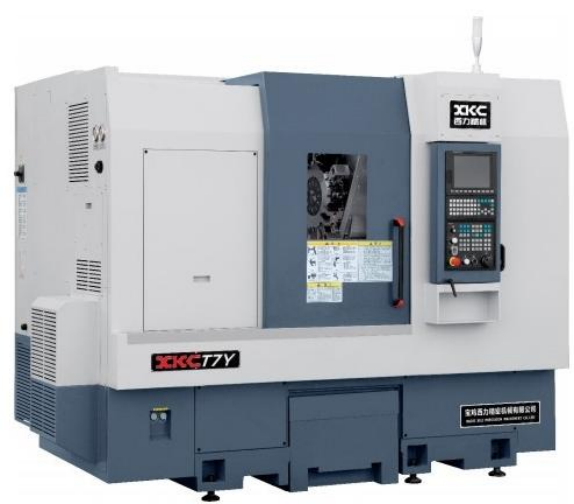

T7Y車削中心

T7Y LATHE CENTER

主軸 ：大通孔、高精、高速、高穩定性

Spindle:Large Through-Hole,High Precision, High Speed,High Stability

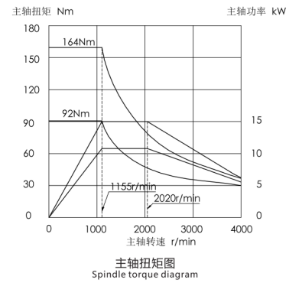

機床采用機械式主軸經過精確的動平衡校正，具有良好的回轉精度和穩定性，抗振性強。主軸采用專用精密高速角接觸球軸承+圓柱滾子軸承結構，具有良好的剛性和高達4500r/min的轉速。

The machine tool features a mechanical spindle with precise dynamic balancing calibration, delivering excellent rotational accuracy, stability, and strong vibration resistance. The spindle employs a specialized precision high-speed angular contact ball bearing combined with cylindrical roller bearings, ensuring superior rigidity and rotational speeds up to 4500 rpm.

主機 ：高剛性、高抗振結構

Machine Host:High Rigidity,High Anti Vibration Structure

T7Y數控車床采用整體式30°斜床身結構，采用優質鑄鐵多次時效，保證基礎件抗變形、抗振能力；Z軸導軌大跨距設計，提高床鞍抗偏擺能力；床鞍和滑板與絲桿螺母座一體化設計，減少連接環節，進一步增強移置部件的受力和抗振性能；這一系列的針對性設計使機床具有遠超市場上同級別機型的良好抗振性、精度及長久使用的穩定性。

The T7Y CNC lathe features an integral 30-degree inclined bed structure, manufactured from high-quality cast iron with multiple aging treatments to ensure robust deformation and vibration resistance in its fundamental components. The Z-axis guide rail employs a large-span design, enhancing the lathe saddle's resistance to lateral movement. The integrated design of the lathe saddle, slide plate, and lead screw nut seat reduces connection points, further improving the load-bearing capacity and vibration resistance of moving parts. These targeted design features endow the machine tool with superior vibration resistance, precision, and long-term operational stability that significantly outperform comparable models on the market.

刀具 ：快速換刀、定位精確

Tools:Quick Tool Change,Precise Positioning

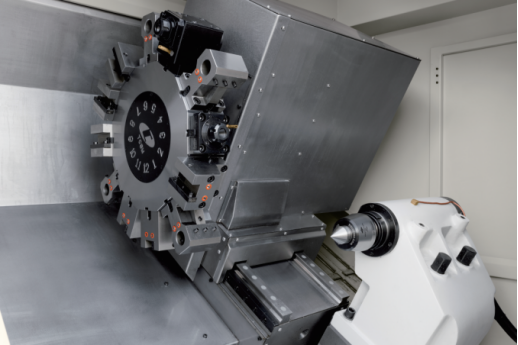

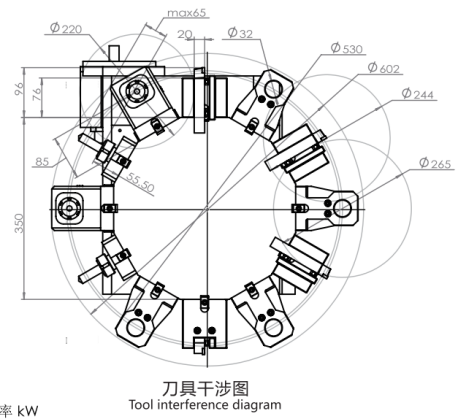

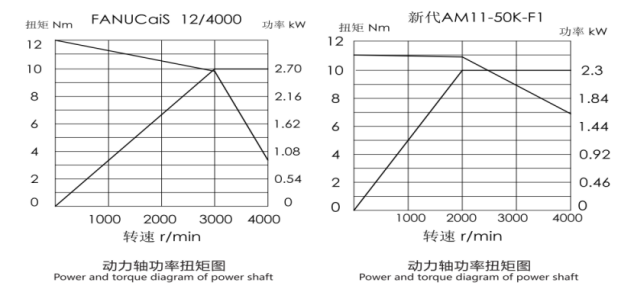

T7Y車削中心采用正交Y軸(硬軌)帶十二工位動力刀塔，伺服轉位，齒盤定位，換刀速度快，定位精準，滿足市場大多數零件的車削加工需求。

The T7Y lathe center features an orthogonal Y-axis (hard rail) with a twelve-station power tool turret, servo-driven tool rotation, and gear disk positioning, offering rapid tool change speed and precise positioning to meet the turning requirements of most market components.

進給 ：準確定位、高精進給

Feed:Accurate Positioning And High-Precision Feeding

X、Z軸導軌采用精密級直線滾柱形滾動導軌，Y軸采用硬軌形式，抗振性好，承載力強。三軸進給軸均采用高剛性滾珠絲杠，在保證進給精度的同時提供極高的絲桿剛性。

The X and Z axes employ precision-grade linear roller guides, while the Y axis utilizes a rigid rail design with excellent vibration resistance and high load-bearing capacity. All three feed axes feature high-rigidity ball screws, ensuring both feed accuracy and exceptional screw rigidity.

機床規格參數

MACHINE SPECIFICATION PARAMETERS
