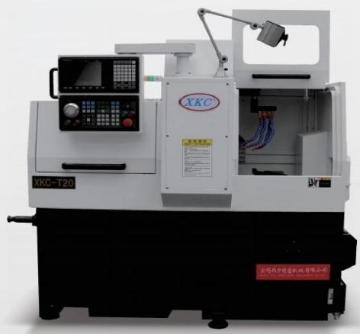

T20系列單主軸精密縱切數控車床
Series Precision Swiss Type Lathe
T20系列精密縱切自動車床系列機床具有高精密、高速的通用性能，同時刀具排布采用兩軸控制橫排刀式刀架排布結構，刀架部分采用獨特的高剛性設計，可實現大吃刀量的高剛性加工。該系列機床的Z軸行程可達245mm,較長工件可減少送料次數，提高加工效率。對于絕大部分長度在245mm 以?xún)?nèi)的零件，可以一次送料完成零件全長度的加工。

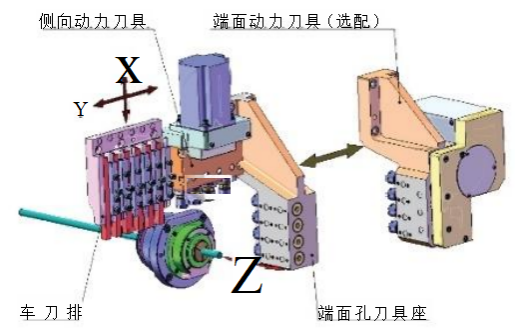

該系列機床標配高速精密同步回轉導套，工件端面孔系加工功能，工件側面鉆孔、攻絲、銑扁加工功能的動力刀具功能模塊，也可選配工件端面鉆孔、攻絲、銑槽、偏心孔加工功能的動力刀具功能模塊，超長行程的Y軸可根據客戶需要靈活定制多種刀具功能組合。配置自動送料機，自動接料裝置，實現自動連續加工高精度、多批量、外形復雜的軸類零件的精密復合加工。
The T20 series precision longitudinal-cutting automatic lathes feature high precision and high-speed versatility. Their tool arrangement employs a two-axis-controlled transverse tool post configuration, with the tool posts designed with unique high-rigidity construction to enable high-rigidity machining with large cutting depths. The Z-axis stroke of these machines reaches up to 245 mm, reducing feed cycles for longer workpieces and improving machining efficiency. For most parts with lengths under 245 mm, the entire length can be machined in a single feed operation.
This series of machine tools is standardly equipped with high-speed precision synchronous rotary guide sleeves, end face machining capabilities for workpieces, and power tool modules enabling side drilling, tapping, and milling operations. Optional power tool modules also support end face drilling, tapping, slot milling, and eccentric hole machining. The ultra-long stroke Y-axis allows flexible customization of various tool function combinations according to customer requirements. The system incorporates an automatic feeding unit and material receiving device, enabling automated continuous precision compound machining of high-precision, multi-batch, and complex-shaped shaft components.
機床規格參數
MACHINE SPECIFICATION PARAMETERS
項目ITEM | T20 | |
加工能力 Capacity | 最大夾持棒料 Max spindle hole diameter | φ3-φ20mm |
最大加工長度 Max turning length | 旋轉導套：245mm Rotation guide bushing 無導套：45mm No guide bushing | |
主軸最大鉆孔直徑 Max spindle drilling diameter | φ10mm | |
主軸最大攻絲直徑 Max spindle tapping diameter | M10 | |
動力頭最大鉆孔直徑 Max power tool drilling diameter | Φ6mm | |
動力頭最大攻絲直徑 Max power tapping diameter | M5 | |
主軸 Spindle | 最高回轉速度 Max spindle speed | 6000r/min |
主軸通孔直徑 Spindle bore dia | φ23mm | |
中心高度 Center height | 1000mm | |
主軸功率 Spindle power | 3 KW | |
刀具配置 Tool specs | 刀具數量 Number of tool | 14(17)把Hold |
車削刀具 Turning tool | 6*φ12x150mm | |
端面鉆孔刀具 Facing tool | 4*ER16 | |
側向動力刀具 Side power tool | 4*ER16 | |
端面動力刀具(選配) Face power tool (optional) | 3*ER16(動力/Power)+4*ER16(端面孔/End Face) | |
動力刀具最高轉速 Max speed of power tool | 5500rpm | |
動力頭電機功率 Motor power of power tool | 0.75Kw | |
行程 / 進給 Travel / Axes | 控制軸數 Number of axis | X、Y、Z 3軸Axis |
快移速度Rapid move speed | X軸Axis：15m/min Y/Z軸Axis：18m/min | |
電機功率(X、Y、Z) Motor power (X、Y、Z) | 0.75KW | |
其它 Others | 機床尺寸(長×寬×高) Floor Space | 1840*1240*1740mm |
機床重量 Mass of machine | 約(About) 2200kg | |
