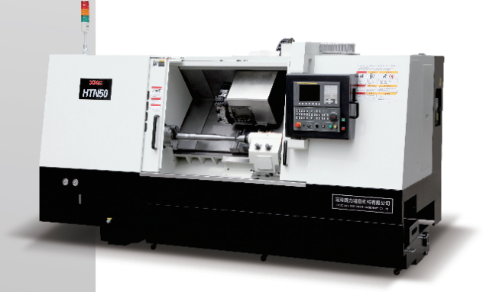

HTN50數控臥式車床
HTN50 Series CNC horizontal lathe
高 剛 性 主 軸 High Rigidity Spindle
機床采用箱體式主軸，使用精密級主軸專用軸承，保證主軸的高剛性和持久精度，主軸跳動<5um。
The machine tool features a box-type spindle equipped with precision-grade dedicated bearings, ensuring high rigidity and long-term accuracy, with spindle runout <5μm.
液 壓 尾 座 Hydraulic Turret
液壓式尾座，尾座導軌可拆卸，配置靈活，大大提高了軸類零件的加工精度和效率，大幅度節約加工時間。
The hydraulic tailstock features detachable guide rails, offering flexible configuration that significantly enhances the machining accuracy and efficiency of shaft components while substantially reducing processing time.
高 剛 性 伺 服 刀 塔 High Rigidity Servo Turret
配置精密級伺服刀塔，12工位刀位數多，25/φ40刀桿強度高，換刀快速、穩定、準確，能夠大幅度節省加工時間。
Equipped with a precision-grade servo tool turret featuring 12 workstations and multiple tool positions, along with high-strength 25/φ40 tool holders, the system ensures rapid, stable, and accurate tool changes, significantly reducing machining time.
高 效 率 加 工 High Efficiency Machining
機床主軸最高轉速4500轉/分鐘，X、Z軸快移速度可達20米/分鐘?？梢耘渲米詣铀土蠙C(jī)，實現高速、高效自動化加工。
The machine tool spindle achieves a maximum rotational speed of 4,500 revolutions per minute, with rapid movement speeds of up to 18 meters per minute along the X and Z axes. It can be equipped with an automatic feed system to enable high-speed, efficient automated machining.
高 精 度 進 給 Accurate Feeding
進給各軸全伺服驅動，采用高精度滾珠絲杠，保證加工精度及長時間的精度保持。
All feed axes are fully servo-driven, utilizing high-precision ball screws to ensure machining accuracy and long-term precision maintenance.
床 身 結 構 Machine Bed Construction
高剛性鑄件45°整體斜床身結構，排屑流暢，結構緊湊，造型美觀。
The high-rigidity casting 45 features an integrated inclined bed structure with smooth chip evacuation, a compact design, and an aesthetically pleasing appearance.
機床規格參數
MACHINE SPECIFICATION PARAMETERS
項目ITEM | HTN50(700/1000) | |
加工能力 Capacity | 最大的回轉直徑 Max. swing diaover bed | φ520mm |
滑板上面最大的回轉直徑Swing over cross slide | φ260mm | |
最大加工直徑 Max process diameter | φ380mm | |
最大加工長度 Max process length | 750/1000mm | |
主軸 Spindle | 主軸最高轉速 Max spindle speed | 4500rpm/min |
卡盤尺寸 Chuck size | 8寸 | |
主軸端部形式 Spindle nose type | A2-6 | |
主軸通孔直徑 Max spindle through diameter | φ62mm | |
主軸可通過棒料直徑 Through hole diameter | φ51mm | |
輸出功率(連續/30min) Spindle motor | 15KW/18.5KW | |
刀塔 Turret | 刀塔形式 Turret type | 伺服刀塔 Servo motor |
刀位數 Number of stations | 12 | |
刀具換刀時間(one/full) Turret changing time | 0.26S(0.5S) | |
刀具尺寸 Tool size | 20×20/φ40mm | |
尾座 Tailstock | 尾座形式 Tailstock | 可移動液壓尾座 Hydraulic tailstock |
尾座錐孔形式 Tailstock quill taper hole | MT NO.5 | |
套筒直徑/行程 Tailstock sleeve travel | φ90mm/90mm | |
尾座最大移動量 Tailstock travel | 600/980mm | |
快移速度 Rapid feed | X/Z軸快進速度 Axis traverse | 20m/min |
X軸行程 X/Z axis travel | 220mm | |
Z軸行程 X/Z axis travel | 770/1020mm | |
控制系統system | Nc形式 Controller | FANUC Oi-mate TD |
冷卻系統 Coolant system | 容積 Capacity | 160L |
冷卻泵電機功率 Coolant motor power | 180W | |
其它 Others | 中空液壓卡盤 Chuck | 8" |
中空液壓缸 Rotating hydraulic cylinder | 6" | |
電源容量 Power capacity | 15KVA | |
機床尺寸(長×寬×高) Floor Space | 2700×1650×1780mm | |
機床重量 Mass of machine | 約3500kg about 3500kg | |
